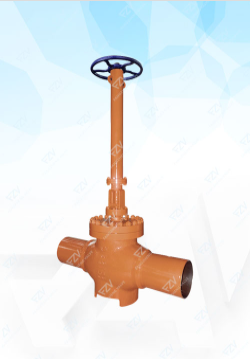

Throttling and Blowdown Valve
The Throttle Stop Emptying Valve manufactured by Fangzheng Valve Group for industrial isolation and flow control. Material, sealing and actuation options are available to match project specifications.
Product Introduction
The Throttle Stop Emptying Valve manufactured by Fangzheng Valve Group for industrial isolation and flow control. Material, sealing and actuation options are available to match project specifications.
Design Standards
Designed and manufactured to BS 1873、ASME B16.34、GB 12235、GB 12224, supporting project specification reviews.
Material Options
Body and trim materials include A216 WCB、WCC;A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M; A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500.
End Connections
Available end connections: RF, BW, RTJ，etc..
Operation Methods
Operation options include Manual, Gear drive, Pneumatic, Electric, Hydraulic etc..
Technical Specifications
Engineering data for Throttling and Blowdown Valve. Final configuration depends on medium, pressure, temperature and project standards.
| Design Standard | BS 1873、ASME B16.34、GB 12235、GB 12224 |
|---|---|
| Size Range | 2″～24″"(DN50~DN600） |
| Pressure Rating | CLASS 150-1500 |
| Body Material | A216 WCB、WCC;A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M; A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500 |
| End Connection | RF, BW, RTJ，etc. |
| Operation | Manual, Gear drive, Pneumatic, Electric, Hydraulic etc. |
| Operating Temp. | -46℃～150℃(the range of service temperature may vary for different materials) |
Application Areas
Typical application areas for Throttling and Blowdown Valve. Share your operating conditions for a project-specific recommendation.
For petroleum
Throttling and Blowdown Valve can be evaluated for For petroleum service when medium, pressure, temperature and end connections are defined.
natural gas
Throttling and Blowdown Valve can be evaluated for natural gas service when medium, pressure, temperature and end connections are defined.
chemical and power industries.
Throttling and Blowdown Valve can be evaluated for chemical and power industries. service when medium, pressure, temperature and end connections are defined.
Request a Quote
Need pricing or technical support for Throttling and Blowdown Valve? Contact FZV with your valve list or operating requirements.
Email Us
swhb6@fzvgroup.comCall Us
+86 189 1789 4555Manufacturing facilities in Wenzhou and Shanghai. Full traceability and material inspection available.
Include operating medium, design pressure and temperature, size, end connections, quantity and actuation requirements where known.
